| Available Angles | 5°, 15°, 30°, 45°, 60°, 75°, 90° |
|---|---|
| Diameter Range | 50 mm to 2200 mm |
| Radius | 1D To 2.5D + Long Radius |
| Make / Brand | VB Make / JACOB Make |
| Connection Type | Flange / Pulling / TC Clamp |
| Thickness | 1.5, 2, 2.5, 3 mm |
| Material Options | MS, GI, Hot Dip Galvanized, SS304, SS316L |
| Surface Finish | MS - Liquid Painted, Powder Coating SS - Mill Finish, Matt Finish, Mirror Finish |

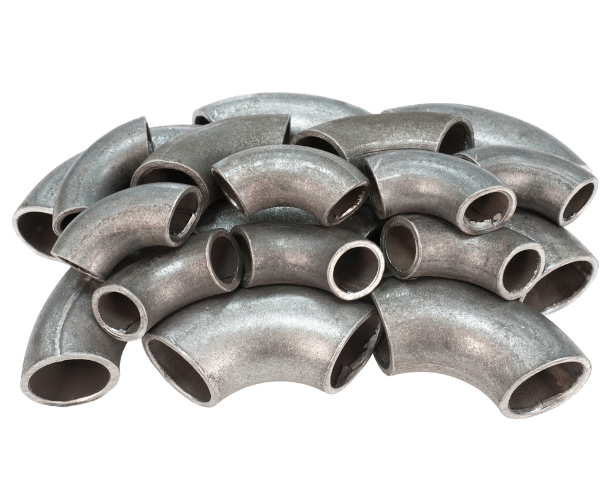

A Bend / Elbow is an essential ducting component designed to redirect airflow efficiently within HVAC, ventilation, dust extraction, and industrial air handling systems. By allowing smooth directional changes, it helps maintain consistent airflow while minimizing turbulence and pressure loss, ensuring optimal system efficiency and reliability.
Bend / Elbow is a key ducting component used to change the direction of airflow in HVAC, ventilation, dust control, and industrial exhaust systems while minimizing pressure loss and turbulence. Designed for smooth and efficient airflow control, it helps maintain system efficiency and consistent air movement. Manufactured using high-quality materials such as MS, GI, HDG, SS304, and SS316L, it offers excellent strength, corrosion resistance, and long service life. Available in multiple sizes with diameters ranging from 50 mm to 2200 mm and angles from 5° to 90°, it can be easily integrated into various duct layouts. This Bend / Elbow is ideal for dust collection, fume extraction, ventilation, and HVAC systems and is widely used in industrial plants, clean rooms, pharmaceutical units, cement industries, and commercial buildings.
| Product / Item | Degree | Diameter | Long | Make / Brand | Connection Type | Thickness | Material | Surface Finish |
|---|---|---|---|---|---|---|---|---|
| Bend / Elbow | 5°, 15°, 30°, 45°, 60°, 75°, 90° | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,625,650 & UPTO 2200 mm |
Radius - 1D | VB Make / JACOB Make | Flange / Pulling / TC Clamp | 1.5, 2, 2.5, 3 mm | MS, GI, Hot Dip Galvanized, SS304, SS316L | MS - Liquid Painted, Powder Coating SS - Mill, Matt & Mirror Finish |
| 5°, 15°, 30°, 45°, 60°, 75°, 90° | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,625,650 & UPTO 2200 mm |
Radius - 1.5D | VB Make / JACOB Make | Flange / Pulling / TC Clamp | 1.5, 2, 2.5, 3 mm | MS, GI, Hot Dip Galvanized, SS304, SS316L | MS - Liquid Painted, Powder Coating SS - Mill, Matt & Mirror Finish |
|
| 5°, 15°, 30°, 45°, 60°, 75°, 90° | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,625,650 & UPTO 2200 mm |
Radius - 2D | VB Make / JACOB Make | Flange / Pulling / TC Clamp | 1.5, 2, 2.5, 3 mm | MS, GI, Hot Dip Galvanized, SS304, SS316L | MS - Liquid Painted, Powder Coating SS - Mill, Matt & Mirror Finish |
|
| 5°, 15°, 30°, 45°, 60°, 75°, 90° | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,625,650 & UPTO 2200 mm |
Radius - 2.5D | VB Make / JACOB Make | Flange / Pulling / TC Clamp | 1.5, 2, 2.5, 3 mm | MS, GI, Hot Dip Galvanized, SS304, SS316L | MS - Liquid Painted, Powder Coating SS - Mill, Matt & Mirror Finish |
|
| 5°, 15°, 30°, 45°, 60°, 75°, 90° | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,625,650 & UPTO 2200 mm |
Long Radius | VB Make / JACOB Make | Flange / Pulling / TC Clamp | 1.5, 2, 2.5, 3 mm | MS, GI, Hot Dip Galvanized, SS304, SS316L | MS - Liquid Painted, Powder Coating SS - Mill, Matt & Mirror Finish |
