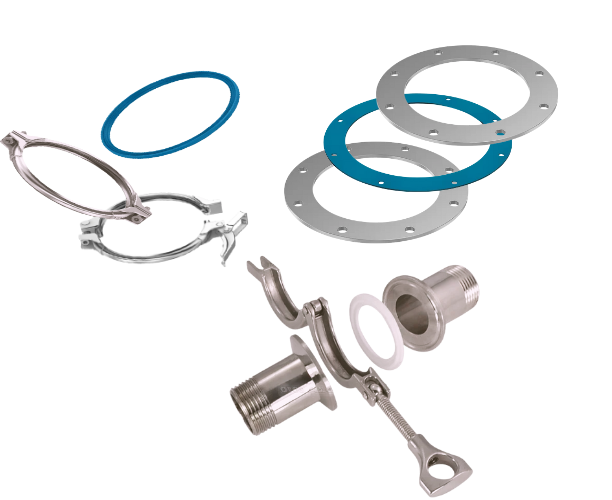

| Available Angles | Flange / Gasket / Pullring / U Shaped Seal / O Ring / TC Clamp with Ferrule |
|---|---|
| Diameter Range | Flange / Gasket - 50 mm to 2200 mm Pullring / U Shaped Seal / O Ring - 60 mm to 630 mm TC Clamp with Ferrule - 75 mm to 600 mm |
| Make / Brand | VB Make / JACOB Make |
| Connection Type JACOB Make | Bolted with sealant / Bolted without sealant / Quick Connect |
| Thickness VB Make | Flange - 5, 6, 8, 10 mm Gasket - 3 mm , 5 mm |
| Material Options | VB Make = Flange - MS, GI, Hot Deeped, SS304, SS316L VB Make = Gasket / O Ring - NBR, Silicone, EPDM VB / JACOB Make = U Shaped Seal - NBR, Silicone, EPDM |
Pipe Fittings are essential components designed to connect, redirect, control, or terminate the flow of air, gases, or fluids within ducting, piping, and ventilation systems. Manufactured from high-quality, corrosion-resistant materials, they ensure secure connections, reliable performance, and long service life even in demanding industrial environments. Available in a wide range of types, sizes, and configurations, Pipe Fittings are ideal for industrial and commercial applications where leak-free joints, efficient flow management, and system durability are essential.
Pipe Fittings are durable and efficient components designed to connect, extend, redirect, or terminate piping systems used for air, gas, and fluid flow in industrial and commercial environments. Manufactured from high-quality, corrosion-resistant materials, they ensure long service life, reliable performance, and minimal maintenance requirements. Engineered for precise fitment and secure sealing, pipe fittings support smooth flow, reduced leakage, and minimal pressure loss, contributing to overall system efficiency. Available in a wide range of sizes, types, configurations, and mounting options, Pipe Fittings are ideal for factories, warehouses, workshops, processing plants, and HVAC systems, supporting safe, reliable, and effective flow management.
| Product / Item | Degree | Diameter | Make / Brand | Connection Type | Thickness | Material |
|---|---|---|---|---|---|---|

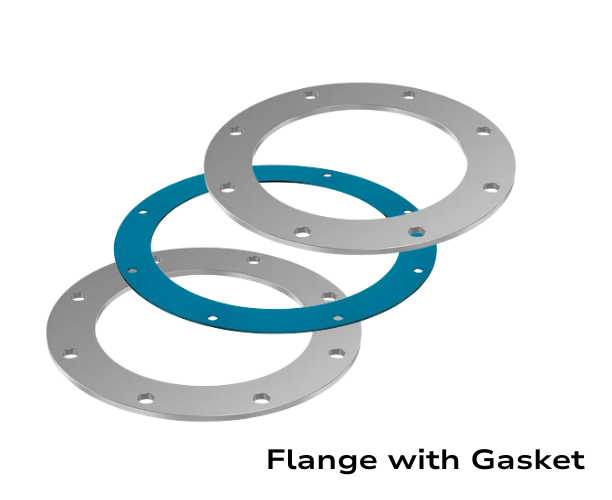

| Pipe Fittings | Flange | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,625,650 & UPTO 2200 mm |
VB Make | 5, 6, 8, 10 mm | MS, GI, Hot Deeped, SS304, SS316L | |
| Gasket | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,625,650 & UPTO 2200 mm |
VB Make | 3 mm, 5 mm | NBR, Silicone, EPDM | ||

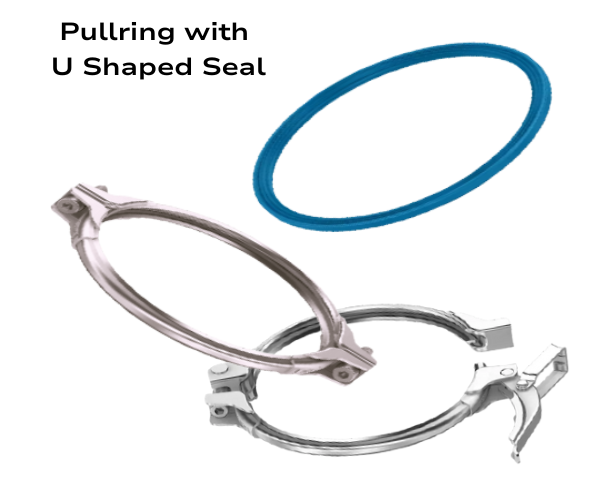

| Pullring | 60,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,630 mm |
JACOB Make | Bolted with sealant / Bolted without sealant / Quick Connect | |||
| U Shaped Seal | 60,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,630 mm |
VB /JACOB Make | NBR, Silicone, EPDM | |||
| O Ring | 60,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600,630 mm |
VB Make | NBR, Silicone, EPDM | |||

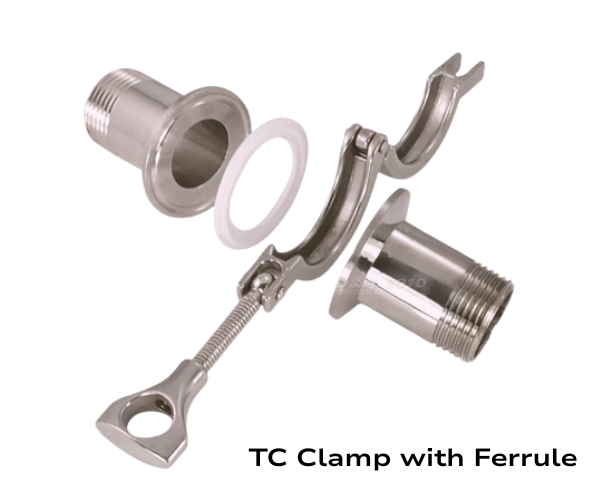

| TC Clamp with Ferrule | 75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425,475,500, 525,550,575,600 mm |
VB Make |
