| Diameter Range | 75 mm to 600 mm |
|---|---|
| Radius | 630 mm To 3500mm |
| Make / Brand | VB Make / JACOB Make |
| Connection Type | Flange / Pulling / TC Clamp |
| Thickness | 1.5, 2, 2.5, 3 mm |
| Material Options | MS, GI, Hot Dip Galvanized, SS304, SS316L |
| Surface Finish | MS - Liquid Painted, Powder Coating SS - Mill Finish, Matt Finish, Mirror Finish |

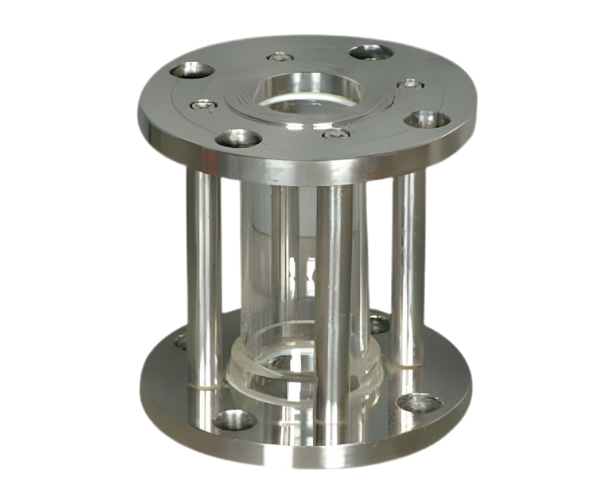

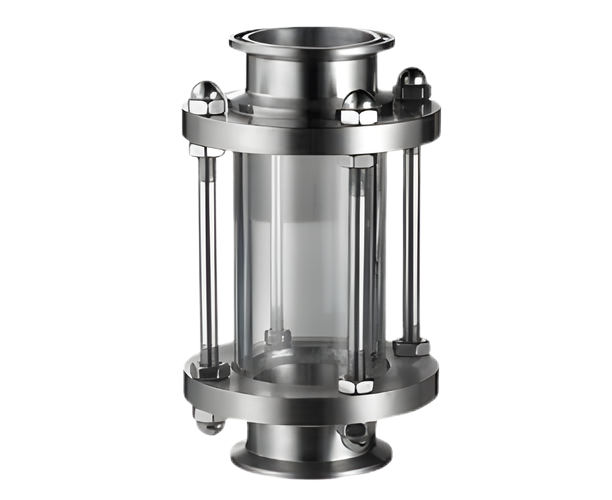

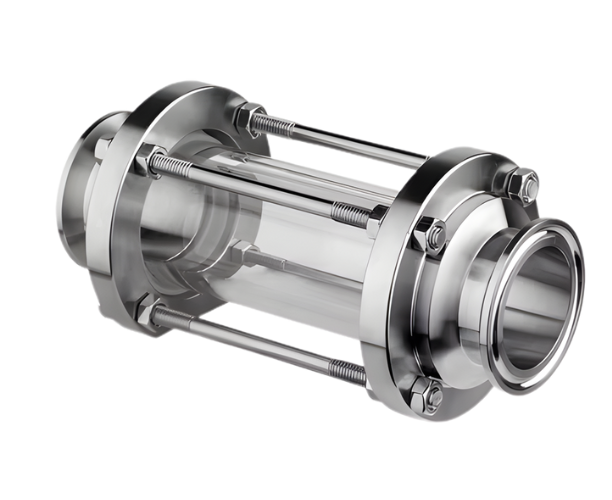

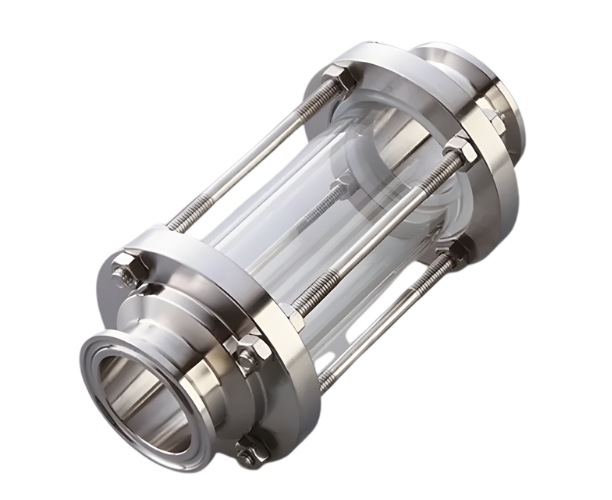

View Glass is primarily used to visually monitor the internal condition of ducting and ventilation systems without opening the line or stopping operations. It allows operators to check airflow movement, dust or particle flow, blockages, buildup, or abnormal conditions in real time. This helps in early detection of issues such as clogging, leakage, or improper airflow, reducing downtime and maintenance costs. View Glass is commonly installed in dust extraction lines, pneumatic conveying systems, HVAC ducts, and industrial exhaust systems to ensure safe, continuous, and efficient system operation while maintaining process control and safety.
View Glass is a durable and efficient airflow monitoring component designed for ventilation, dust extraction, and visual system inspection in industrial and commercial environments. Manufactured from high-quality, corrosion-resistant materials with a clear, impact-resistant glass panel, it ensures long service life, reliable performance, and low maintenance requirements. The transparent viewing design allows quick and safe observation of airflow, dust movement, and internal duct conditions without opening the system or interrupting operations, helping maintain smooth airflow and optimal system efficiency. Available in multiple sizes, configurations, glass types, and mounting options, View Glass units are ideal for factories, warehouses, workshops, processing units, and HVAC systems, supporting safe, clean, and effective air management with simplified monitoring.
| Product / Item | Diameter | Long | Make / Brand | Connection Type | Thickness | Material | Surface Finish |
|---|---|---|---|---|---|---|---|
| View Glass | 50,63,75,100,125,150,175,200,225,250, 275,300,325,350,375,400,425, 475,500,525,550,575 & UPTO 600 mm |
630mm,TO 3500mm | VB Make / JACOB Make | Flange / Pulling / TC Clamp | 1.5, 2, 2.5, 3 mm | MS, GI, Hot Dip Galvanized, SS304, SS316L | MS - Liquid Painted, Powder Coating SS - Mill, Matt & Mirror Finish |
