Concrete Paving Equipment

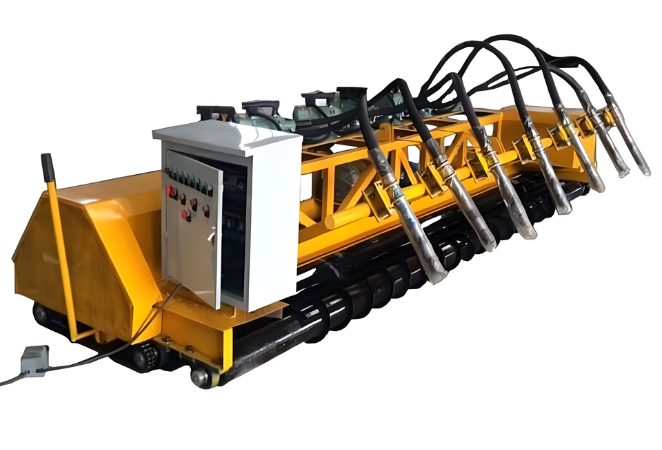

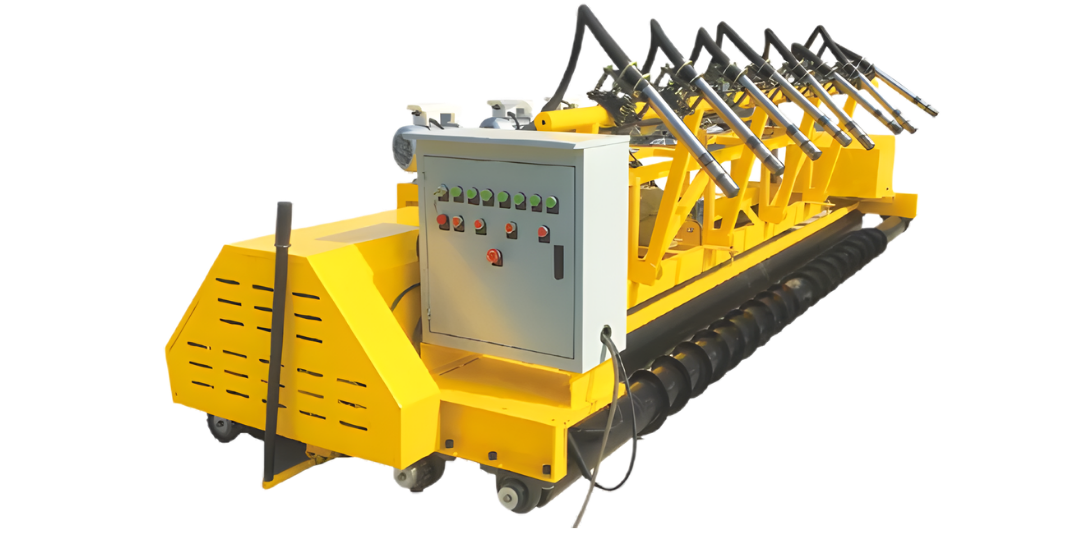

Vibratory Paver TVP 6.

A high-performance vibratory concrete paver engineered for smooth, uniform, and precise paving of roads and industrial slabs. Ideal for highways, airport runways, and large-scale construction projects.

Model 2025

High-Precision Vibratory Paver

The TVP 6 is designed for high-performance vibratory paving, delivering smooth, uniform surfaces with precise thickness control. Its robust industrial design ensures consistent performance, high compaction, and reliability for large-scale paving projects.

6,000 mm Roller Length
50-60 Hz Vibratory Frequency
5.8 Mtr Working Width

Get Best Quote Brochure

POWER & PERFORMANCE

Why Choose TVP 6

High Vibratory Force

Delivers 4.5–5.5 kN compaction force ensuring dense, smooth concrete surfaces with uniform finishing.

Precise Thickness Control

Paving thickness up to 300 mm and spread thickness 250–300 mm for uniform, high-quality concrete layers.

Robust Industrial Build

Heavy-duty frame, multiple motors, and 10 vibrator needles ensure durability and long operational life.

Technical
Specifications

Engineered for precision vibratory paving of large-scale concrete surfaces.

Quick Fact:

Ideal for highways, airport runways, industrial floors, and heavy infrastructure projects.

ROLLER LENGTH	6000 mm
VIBRATORY FREQUENCY	50-60 Hz
VIBRATION FORCE	4.5 - 5.5 kN
PAVING THICKNESS	300 mm
SPREAD THICKNESS	250-300 mm
VIBRATORS NEEDLES	10 Nos
QTY ROLLER & AUGER	2 Rollers & 1 Auger
WALKING SPEED	5-7 Mtr/Min
MAX TOTAL POWER	25.7 kW
VIBRATION MOTOR POWER	2.2 kW Per Set
LIFTING MOTOR	2.2-3.0 kW
TRAVELLING MOTOR	5.5 kW
AUGER MOTOR	5.5 kW
WORKING WIDTH	5.8 Mtr
VOLTAGE / PHASE	380V / 415V 3 Phase
DIMENSIONS	5500x1200x980 mm
WEIGHT	1350 Kg
