Hariom Udyog India Private Limited is an ISO 9001 - 2015 accredited organisation involved in licensed Industrial Manpower supply, Job works Supplier, recruitment and employment consulting agency, headquartered in Nasik with offices in Mumbai and Pune. The company has earned over 21 years of expertise in Industrial Manpower / labour supply and Engineering job work and involved in Labour Contract’s.
Read MoreInjection Molding
Injection molding machines are pivotal in the mass production of plastic products, offering a highly efficient and precise method for shaping a wide range of components. At the core of these machines is a sophisticated process that begins with the introduction of raw materials, usually plastic pellets, into a hopper. The material is then carefully heated and melted in the machine's barrel before being injected into a mold at high pressure. This mold, often customized to the specific shape of the desired product, facilitates the cooling and solidification of the molten material, resulting in the formation of the final product.
Machine Specification
Sandretto 450 ton
| Tonnage : | 450 ton |
| Distance Bet tie bar : | 650*630 mm |
| Mould Platen Size : | 980*980 mm |
| Shot Weight : | 1220 gms |
| Screw Diameter : | 75 mm |
| Injection Pressure : | 1500 bar |
| Mould Opening Stroke : | 710 mm |
Machine Specification
Ferromatik Milacron K350S
| Tonnage : | 350 ton |
| Distance Bet tie bar : | 630*630 mm |
| Mould Platen Size : | 970*970 mm |
| Shot Weight : | 760 gms |
| Screw Diameter : | 60 mm |
| Injection Pressure : | 2144 bar |
| Mould Opening Stroke : | 750 mm |
Machine Specification

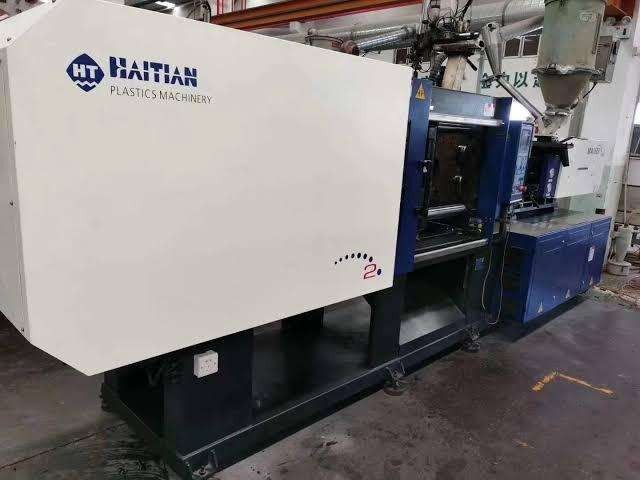

Haitian 200 ton
| Tonnage : | 200 ton |
| Distance Bet tie bar : | 535*535 mm |
| Mould Platen Size : | 760*760 mm |
| Shot Weight : | 480 gms |
| Screw Diameter : | 55 mm |
| Injection Pressure : | 1862 bar |
| Mould Opening Stroke : | 480 mm |
Machine Specification
Haitian 160 ton
| Tonnage : | 160 ton |
| Distance Bet tie bar : | 470*470 mm |
| Mould Platen Size : | 715*715 mm |
| Shot Weight : | 377 gms |
| Screw Diameter : | 50 mm |
| Injection Pressure : | 2253 bar |
| Mould Opening Stroke : | 450 mm |
Machine Specification

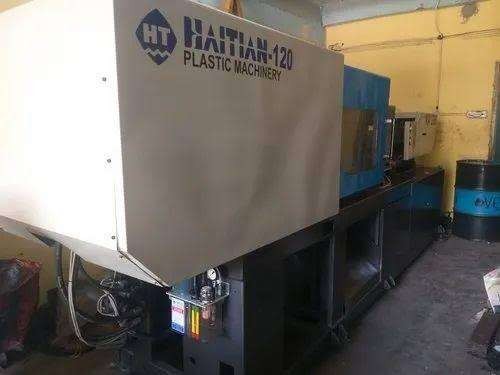

Haitian 120 ton
| Tonnage : | 120 ton |
| Distance Bet tie bar : | 410*410 mm |
| Mould Platen Size : | 615*615 mm |
| Shot Weight : | 336 gms |
| Screw Diameter : | 50 mm |
| Injection Pressure : | 1676 bar |
| Mould Opening Stroke : | 400 mm |
Machine Specification
Haitian 100 ton
| Tonnage : | 100 ton |
| Distance Bet tie bar : | 380*380 mm |
| Mould Platen Size : | 550*550 mm |
| Shot Weight : | 302 gms |
| Screw Diameter : | 50 mm |
| Injection Pressure : | 1419 bar |
| Mould Opening Stroke : | 320 mm |
Machine Specification
Haitian 90 ton
| Tonnage : | 90 ton |
| Distance Bet tie bar : | 360*360 mm |
| Mould Platen Size : | 535*535 mm |
| Shot Weight : | 193 gms |
| Screw Diameter : | 40 mm |
| Injection Pressure : | 2218 bar |
| Mould Opening Stroke : | 320 mm |
Machine Specification
Haitian 60 ton
| Tonnage : | 60 ton |
| Distance Bet tie bar : | 320*320 mm |
| Mould Platen Size : | 490*490 mm |
| Shot Weight : | 123 gms |
| Screw Diameter : | 35 mm |
| Injection Pressure : | 1645 bar |
| Mould Opening Stroke : | 300 mm |
