PreciCUT Machine Highlights

N-Gravetek Manufactures 3-axis, 4-asis & 5-asis CNC Engraving & Milling Machines.

Founded in 2008 in a small rented apartment of 700 sq. ft. in heart of nashik city; we have now grown to a 10000 sq. ft. premises located in Satpur MIDC.

With over 180+ installations all over India, we have wide range of products and services with unmatched industry expertise to enable our customers meet their challenges in 3-axis, 4-asis & 5-asis applications. Our Micro-Milling & Engraving Machines are most suitable for molds which require work with high precision.

A talented and dedicated team is what helps N-Gravetek remain committed to providing the best dpre and post sales service support for our customers.

Product Video Technical Specs Sample Images
Download Catalog

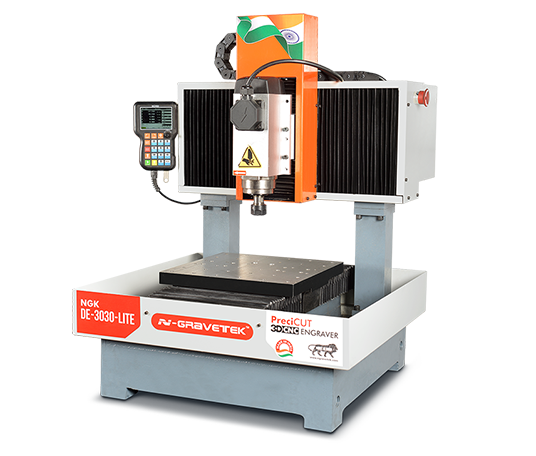

NGK-DE-3030 LITE Machine Technical Specifications

Description	NGK-DE-3030 LITE
Working Area – (X) x (Y) x (Z) (mm)	300 (X) X 300 (Y) X 100 (Z)
Total Size- Clamping Area in mm	300 (X) X 300 (Y)
Engraving Speed	2000 mm/min
Rapid Speed	3000 mm/min
Spindle Speed	24000 RPM
Spindle Power	2.2 KW
Maximum Tool Diameter	6 mm (Non-Ferrous Material) 4mm (Ferrous Material)
Guide System	Linear Motion Guide
Drive System	Ball Screw
Motor/Drive	Stepper Motor & Drive
Standalone Controller	(DSP) Digital Signal Processor
USB Connectivity	YES
Machine Self Zero	YES
User Work Zero (G54)	10
Auto Spindle On/Off	YES
Tool Break Point Resume	YES
Power Resume Function	YES
NC File Format	ISO G-Code (Standard)
Accuracy	0.025mm
Feeding Height	150 mm (Customisable)
Safe Weight on Table	50 Kg
Weight of Machine	150 Kg
Floor Space (mm)- (L) x (D) x (H)	600 X 815 X 850 mm

Standard Accessories

Names	Nos
Engraving Tool	1 Nos
Spanner (Required Sizes Only)	2 Nos
USB Pen Drive	1 Nos
Collet (3mm)	1 Nos

Optional Accessories

2" (Width) x 3" (Opening) Precision Vice
Rotary Axis / 4th Axis
Suitable Voltage Stabilizer / UPS
CAD/CAM Software As Per Requirement
Tool Grinder (Taiwan Make) (Training Included @Our Works)
