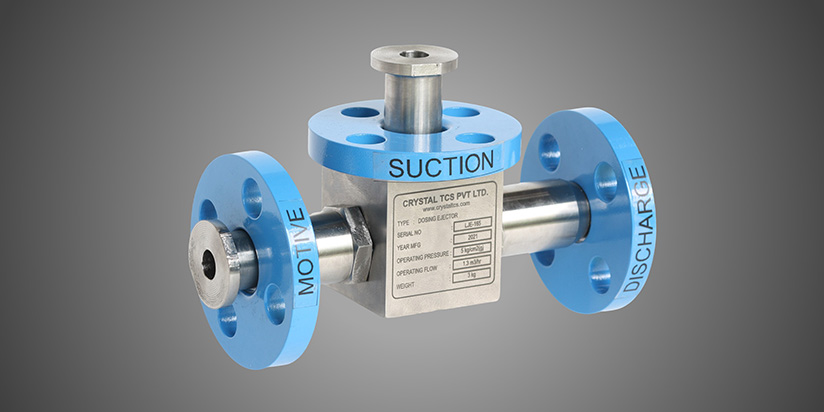

Dilution Ejectors
Dilution Ejectors are essentially Liquid Eductors that operate on the basis of the jet Venturi principle.

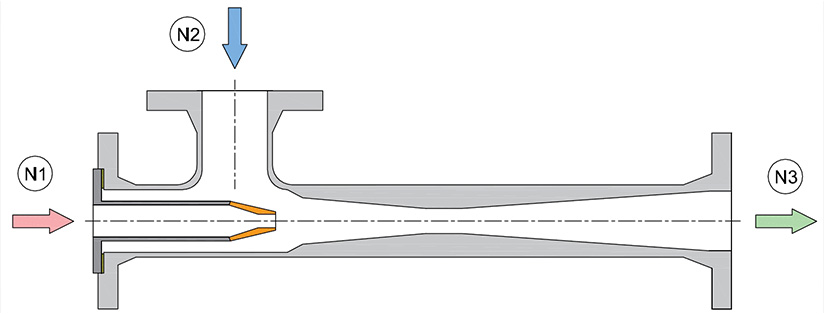

Dilution Ejectors typically have 3 connections
- 1. High Pressure(HP) Liquid Inlet
- 2. Suction
- 3. Outlet
During operation Dilution Ejectors are able to create a pressure differential across its Suction and outlet. Dilution Ejectors utilize the energy in pumped liquid entering from the HP liquid inlet to create this pressure differential.
This enables Dilution Ejectors to be used for creating low pressure at its suction. The low pressure allows the Dilution Ejectors to suck liquids through the suction. The suction liquid mixes with the HP liquid inside the eductor and gets pumped out from the Outlet. The discharge contains the mixture of HP liquid and suction liquid.
This phenomenon allows the Dilution Ejectors to be used as a mixing and pumping device.
By controlling the amount of liquid sucked and the HP liquid flow accurate dilution can be obtained through the dilution ejector. Further the operating flows can be controlled by regulating the HP Liquid, Suction & Outlet Pressures and thus a control on extent of dilution can also be obtained.
Additionally the Dilution Ejector can also be used for pumping the diluted media thus eliminating any need for an additional pump.
Typical Applications
- Acid Dilution (Sulphuric Acid, Hydrochloric acid)
- Alkali Dilution
- Caustic dilution
- Lime mixing
Features of Dilution Ejectors
- Serves dual purpose of dilution and pumping
- Ability to achieve precise dilution ratios and concentration
- Ability to handle powders, granules and lumpy solid matter
- Custom designed models – ensures perfect fit for your application.
- Self Priming mode of operation
- Available in a large variety of materials
- Availability in multiple type of end connections – Flanged, Threaded
| Metallic | Non Metallic |
|---|---|
| Stainless Steels SS 304 / SS 316 | PP (Poly-propylene) |
| Duplex & Super Duplex Stainless Steel | PTFE (Poly-tetra-fluoro-ethylene) |
| Exotic metals (Hastelloy, Inconel, Titanium) |
Benefits of Dilution Ejectors
- Static Device without any moving parts – ensure long reliability and maintenance free operation.
- Tolerate entry of solids particles into the ejector – avoids abrupt breakdowns.
- Small & compact size – allows installation in tight spaces & difficult to access areas.
- Silent Operation
- Non sparking operation – can be safely used in hazardous & flammable areas
- Manufactured in multiple materials – allows using the most cost-effective & chemically compliant materials for the application.
