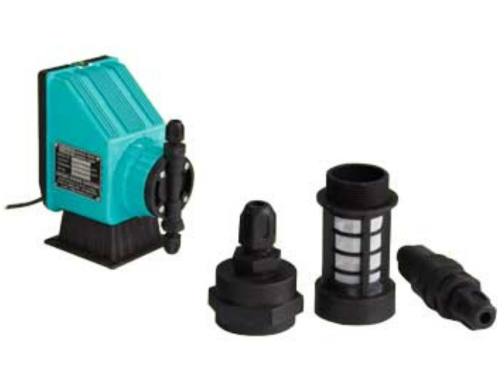

Electronic Dosing Pumps

Hydraulic Actuated Diaphragm Type Pump is membrane type pump which has good suction lift character. Heavy-duty hydraulically actuated tubular diaphragm pump specially designed to ensure free flow performance in high capacity and high pressures situations also. Our pumps are specially designed for corrosive liquids including H2SO4 or slurries. Engineered under the firm direction of experienced team members, these handle inconsistent suction conditions and suction lift capabilities to 16 feet. These are straightened with Easy maintenance cartridge type check valves, Hypalont and Vitont diaphragms and Single and double ball check valves to ensure better performance.

TESTING FACILITY

TEST FACILITY AT UDS

  • At time 6 pumps can be tested simultaneously
  • pump flow rate at working pressure
  • vibration of pump and motor, SOUND METER
  • Amp meter, Pressure meter
  • Voltage meter, Frequency meter.
  • All instruments are tested as per govt.standard at approved govt. lab
  • Pumps up to 7000 LPH flow and maximum 450 BAR pressure can be tested.

Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 18 Image 1 Image 2 Image 3 Image 4 Image 5 Image 6 Image 7 Image 8 Image 18
Image 9 Image 10 Image 11 Image 12 Image 13 Image 14 Image 15 Image 16 Image 17 Image 9 Image 10 Image 11 Image 12 Image 13 Image 14 Image 15 Image 16 Image 17
Envision Equipments

Know More About
Our Success

Bring to the table win-win survival strategies to ensure
proactive domination. At the end of the day, going for
ward, a new normal.

00

+ Country

00

Satisfied clients

00

Years experiences

00

Qualty paramerters

Specifications :

  • Liquid ends - polypropylene (PVC/SS316/PTFE - as optional)
  • Modular design occupying less foot print and light weight
  • Suction lift up to 1.5 mWc
  • Diaphragm : teflon (PTFE) faced hypalon
  • Glandless & leakage free diaphragm pumps
  • Solenoid driven aided by professional pulser circuitry
  • Steady state accuracy : +/- 3%
  • Repeatability : +/- 3%
  • Capacity up to 12 LPH
  • Discharge pressure up to 10 bar (kg/sq. cm)
  • Stroke speed up to 120 spm
  • Material of construction
  • Excellent proportional control with higher turn-down ratio
  • Adjustable injection frequency (up to 120 SPM)
  • Corrosion resistant GFPP housing
  • Teflon faced hypalon diaphragm for long lasting service

Product Details :

Minimum Order Quantity 1 Piece
Liquid ends Polypropylene (PVC/SS316/PTFE - as optional)
Suction lift up to 1.5 mWc
Diaphragm Teflon (PTFE) faced hypalon
Steady state accuracy + /- 1%
Repeatability + /- 1%
Capacity Up to 12 LPH
Discharge pressure Up to 10 bar (kg/sq. cm)
Stroke speed Up to 120 spm
Condition New
Power Source Electric
